Music HUD

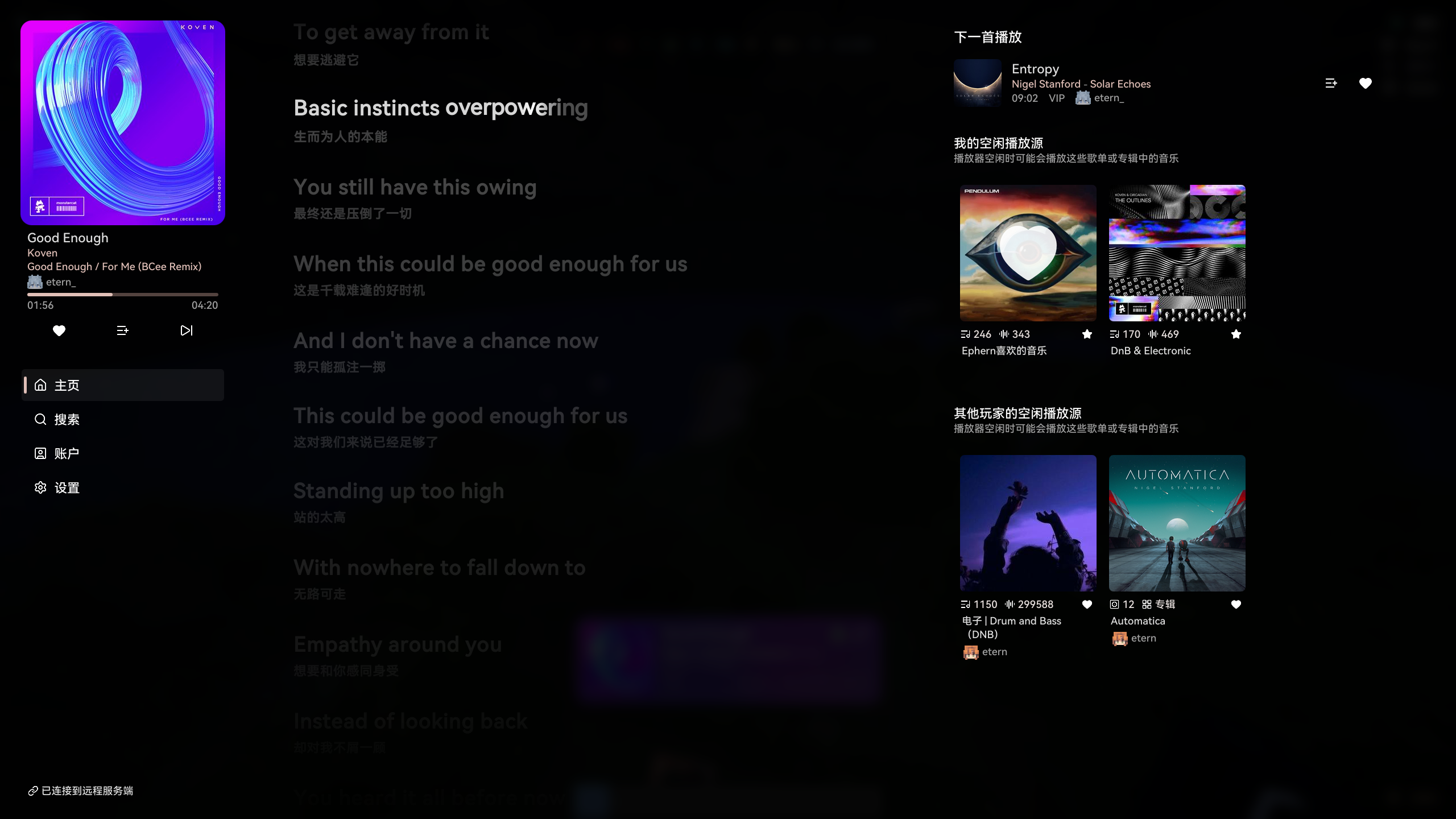

(Shot on 1.3.0 alpha 2, see more in gallery)

A GUI-based, all situations (singleplayer/multiplayers) music mod/plugin designed with zero modifications to game mechanics

Due to service scope provided by NetEase, this mod might not work well outside China

Related Links

Third-party Bukkit plugin 1 (1.0.5 stable -)

Third-party Bukkit plugin 2 (1.1.4 hotfix +, now partly merged into main repository)

Prerequisites

• ModernUI (only client, using mVUS fork on 1.21.9-11, this fork on 26.2)
• Forge Config API Port (only Fabric)
• Fabric API (only Fabric)
• Architectury API (Fabric / NeoForge, required by MusicHUD 1.2.0 and below)

Features

• With graceful GUI, providing an in-game operation interface and a easily configurable HUD.
• Can read NetEase Cloud Music account playlists for convenient song requests.
• The server does not retain user data; it is only temporarily stored during session.
• Streamed playback with no redundant client-side caching.
• Staggered lyrics auto scroll inspired by Apple Music
• HUD dynamic fluid background
• Windows SMTC / Linux MPRIS (have not fully tested yet) support (Powered by slightly modified JMTC)
• High quality audio support, with optimized pipeline based on OpenAL
• Connected mode: Synchronized server-wide play queue and progress.
• Isolated mode: Do all works on client, enjoy music yourself.
• Sharing same playback model between connected mode and isolated mode, easy to use
• Low network bandwidth / performance required for server side, audio stream downloading and processing is done on client side

Functions

• Search for musics, playlists, albums and artists.
• Favorite/Unfavorite musics, subscribe/unsubscribe playlists, albums and artists. (1.3.0 alpha +)
• Vote for skipping current music
• Log in to NetEase Cloud Music account via QR code or SMS code to explore subscribed playlists, albums and artists.
• Configure idle playback sources for automatic random song switching when music player is idle.
• Display lyrics, requesting player (or avatar) in the HUD and user interface.

Compatibility

• Mute Reactive Music when MusicHUD is playing
• Connected mode compatible with ViaVersion (1.3.0 alpha +)
• Adapted to Sound Physics Perfected, disabled its reverb applied to MusicHUD audio pipeline to improve audio quality (1.3.0 alpha 2+)

TO-DO List

• Customizable HUD layout [target 1.3.0/1.4.0]
• More music platform support (QQ Music, Kugou Music or more) [target 2.0.0]

Usage

Client

First of all, place the prerequisite mods and the MusicHud jar file into the mods folder.

Single-player or LAN Multi-player Host

All you need is to configure or deploy an API server.

Multiplayer (join Server or LAN Multi-player)

Connected mode

You don't need to configure or deploy an API server, but the server or LAN multiplayer host needs to configure or deploy MusicHUD and API server.

Isolated mode

All you need is to configure or deploy an API server.

Server

All you need is to configure or deploy an API server.

How to Deploy an API Server

There are 2 methods to deploy.

Deploy bound with mod (recommend for client)

This method allows MusicHUD to manage lifecycle of api server.

Due to some limitations, API Server may not be auto-closed when game exit abnormal (e.g., due to a crash)

Auto Deploy

You can find "Download API..." button in setting page, which will open a download guide, and download NetEase Cloud Music Enhanced from a trusted repository which automatically releases artifact powered by GitHub Actions to bypass login restrictions of accessing artifacts from GitHub Actions, with optional GH Proxy speedup

Manual Deploy

1. Login to GitHub (Important, otherwise can NOT download artifacts) and go to https://github.com/NeteaseCloudMusicApiEnhanced/api-enhanced/actions/workflows/build-dev.yml
2. Click latest action runs in type "Build Artifacts" and download platform binary artifacts matches to your pc/server platform
3. Uncompress the binary executable file from ZIP file to ...
   • Mod edition: {corepath}/music-hud/ and rename it to api (api.exe on Windows)
   • Plugin edition: {corepath}/plugins/MusicHud/ and rename it to api (api.exe on Windows)
   • Or place it anywhere and modify config in game or option serverApiBinaryExecutablePath (absolute or relative path) in config file /config/music_hud-common.toml.

Deploy separately (recommend for server)

1. Deploy NetEase Cloud Music API Enhanced (https://github.com/neteasecloudmusicapienhanced/api-enhanced).
2. If not using the default port (3000) of NCM API Enhanced or deploying on another server, modify the serverApiBaseUrl property in the config file /config/music_hud-server.toml.

Experimentally, there is another Rust version API server, which remains most of api endpoints same with NodeJS version but is much faster. MusicHUD have adapted to it since 1.2.13. You can find binary executible files in its release page. But there are still some issues in this api server edition. So use it at your own risk.

CN version description

图形化的全场景（单人/多人游戏）音乐模组/插件，设计上不修改任何游戏机制

相关链接

MC 百科

第三方 Bukkit 插件实现 1 (1.0.5 stable -)

第三方 Bukkit 插件实现 2 (1.1.4 hotfix +，目前已部分合并至主仓库)

前置依赖

• ModernUI （仅客户端，在 1.21.9 上使用 mVUS 分支，在 26.2 上使用该分支）
• Forge Config API Port （仅 Fabric）
• Fabric API （仅 Fabric）
• Architectury API （Fabric / NeoForge，MusicHUD 1.2.0 以及更低版本需要）

特点

• 具有优雅的 GUI，提供游戏内操作界面，以及易配置的 HUD
• 可读取网易云账户歌单，方便点歌
• 服务端不保留用户数据，仅在连接会话中暂存
• 流式播放，无赘余的客户端缓存
• 受 Apple Music 启发的歌词交错滚动与逐字歌词
• HUD 动态流体背景
• Windows SMTC / Linux MPRIS（尚未充分测试） 支持 （略微修改自 JMTC）
• 高质量音频支持，使用基于 OpenAL 的优化音频管线
• 连接模式：全服同步播放队列、进度
• 隔离模式：在客户端上独自享受音乐
• 连接模式/隔离模式共享同一播放模型，操作简便
• 服务端带宽/性能占用低，音频流下载和处理由客户端完成

功能

• 搜索音乐、歌单、专辑和歌手
• 收藏/取消收藏音乐、歌单、专辑和歌手（1.3.0 alpha +）
• 投票跳过歌曲
• 通过二维码或短信验证码登录网易云账户，查看收藏的歌单、专辑和歌手
• 配置空闲播放源，播放器空闲时随机切歌
• 在 HUD 和用户界面中展示歌词，点歌玩家（或头像）

兼容

• 在 MusicHUD 播放时静音 Reactive Music
• 连接模式与 ViaVersion 兼容（1.3.0 alpha +）
• 适配 Sound Physics Perfected, 禁用 MusicHUD 音频管线的混响以保证音质 (1.3.0 alpha 2 +)

大饼 待办清单

• 可自定义的 HUD 布局 [目标 1.3.0/1.4.0]
• 更多音乐平台支持(QQ音乐、酷狗音乐等) [目标 2.0.0]

使用

客户端

首先在 mods 文件夹中放入前置 mod 和 MusicHUD 的 jar 文件

单人模式 或 局域网联机主机

只需要配置/部署 API 服务器

加入服务器 或 加入局域网世界

连接模式

不需要配置/部署 API 服务器

但是需要服务器/局域网主机配置/部署 MusicHUD 和 API 服务器

隔离模式

只需要配置/部署 API 服务器

服务端

只需要部署 API 服务器

如何部署 API 服务器

两种方法

绑定在 mod 中（推荐客户端使用）

这个方法会让 MusicHUD 管理 API 服务器生命周期

由于一些限制，在游戏非正常退出时（如崩溃）无法自动结束进程

自动部署（客户端，1.2.15+）

在设置页面中的 API 状态一栏中可找到“下载 API...”按钮，可打开一个下载指引，会从一个通过 GitHub Actions 自动发布 release 的可信的分支仓库下载 NetEase Cloud Music Enhanced 以绕过访问 GitHub Actions 工件的登录限制，可选使用 GH Proxy 加速下载

手动部署

1. 登录到 GitHub (重要，否则无法下载工件) 并跳转到 https://github.com/NeteaseCloudMusicApiEnhanced/api-enhanced/actions/workflows/build-dev.yml
2. 在 actions 类型中选择 "Build Artifacts" 并进入最新的构建中根据你的平台下载对应的二进制构建产物
3. 解压下载得到的压缩包并将其中的二进制可执行文件放置到...
   • mod 版：{核心目录}/music-hud/ 并重命名为 api (对于 Windows 为 api.exe)
   • 插件版: {核心目录}/plugins/MusicHud/api(.exe)
   • 或者放在任意处并在游戏内或配置文件/config/music_hud-common.toml中修改选项 serverApiBinaryExecutablePath 对应(绝对/相对)目录

独立部署（推荐服务端使用）

1. 部署 Netease Cloud Music API Enhanced (https://github.com/neteasecloudmusicapienhanced/api-enhanced)
2. 如果不使用 NCM API Enhanced 的默认端口 ( 3000 ) 或在其他服务器上部署，需要修改配置文件/config/music_hud-server.toml的 serverApiBaseUrl 属性

实验性地，有另一个Rust 版本的 API 服务器，保持了大部分 API 端点不变，但比 NodeJS 版本快得多。MusicHUD 已在 1.2.13 实现对其兼容。可以在它的 Release 页中找到二进制可执行文件。但它仍然有一些问题。使用前请考虑风险
